Bell, Relay and Bimetallic Switch Assembly Kit

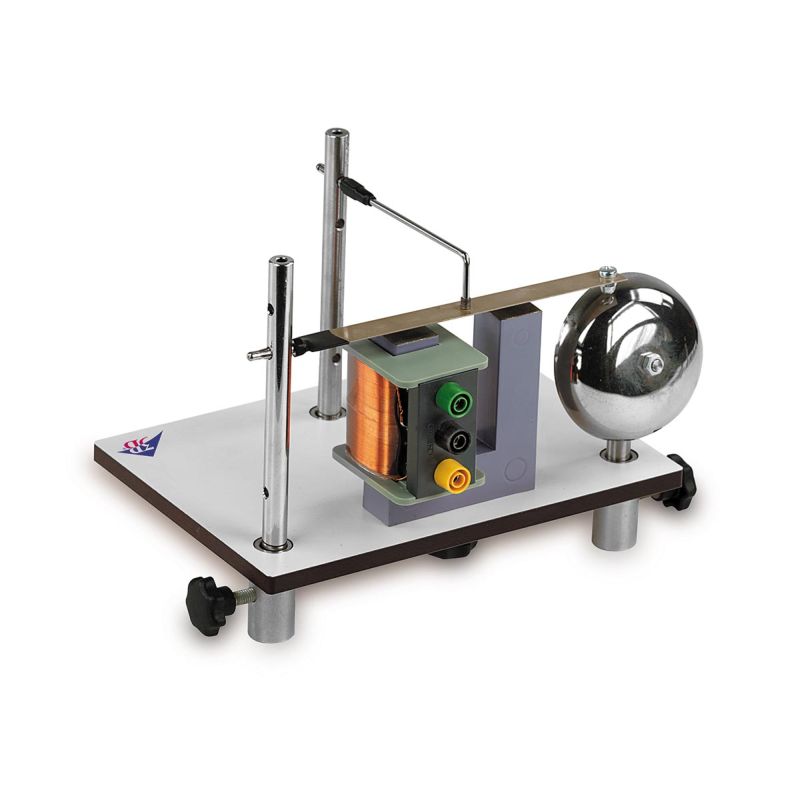

The Bell, Relay and Bimetallic Switch Assembly Kit consists of everything required to assemble electromagnetic or bimetallic switches. The kit is suitable for different experiments, including a bimetallic switch circuit, a bell circuit or a relay.

Components of the Bell, Relay and Bimetallic Switch Assembly Kit

The kit comes with the following components to ensure a full set:

• 1 x stand plate with 3 clamps
• 1 x bell measuring 70mm in diameter
• 2 x contact rods, three 4mm cross holes
• 1 x leaf spring with connector

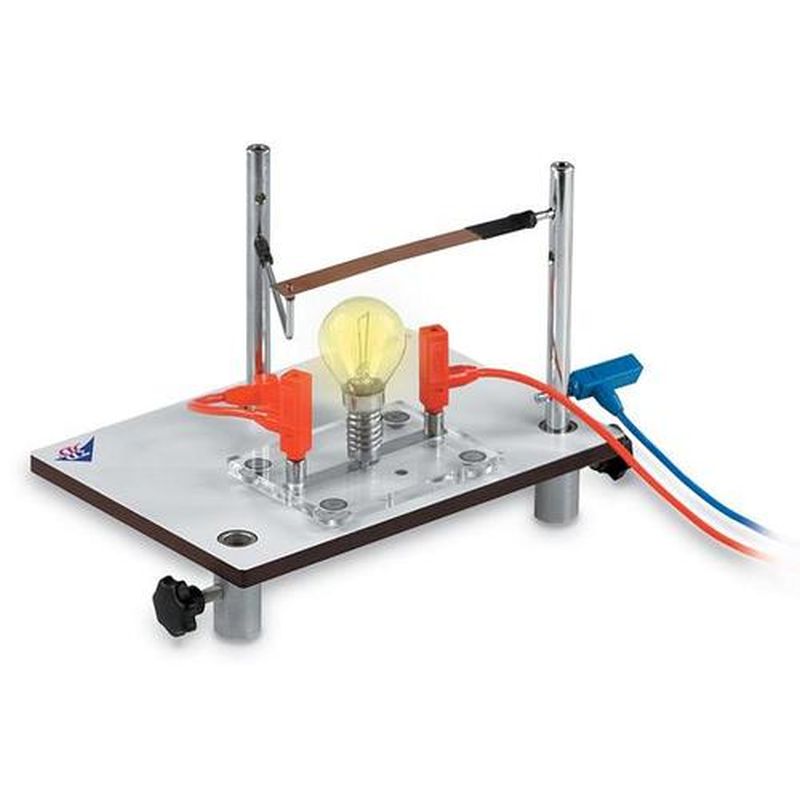

• 1 x bimetallic strip with connector
• 1 x armature with connector
• 1 x contact pin with connector
• 1 x U-core, measuring 20 x 20mm
• 1 coil, 800 turns

Technical Specifications of the Bell, Relay and Bimetallic Switch Assembly Kit

• Base plate dimensions: approx. 200 x 140 x 40mm
• Weight: approx. 1.6kg

Compatible Equipment with the Bell, Relay and Bimetallic Switch Assembly Kit

• Type E14, 12V, 25W bulb
• E14 lamp socket
• Transformer with Rectifier (230V, 50/60Hz) OR Transformer with Rectifier (115V, 50/60Hz)

Delivery Information

The Bell, Relay and Bimetallic Switch Assembly Kit is usually delivered within 3 to 5 working days of ordering via UPS courier.
