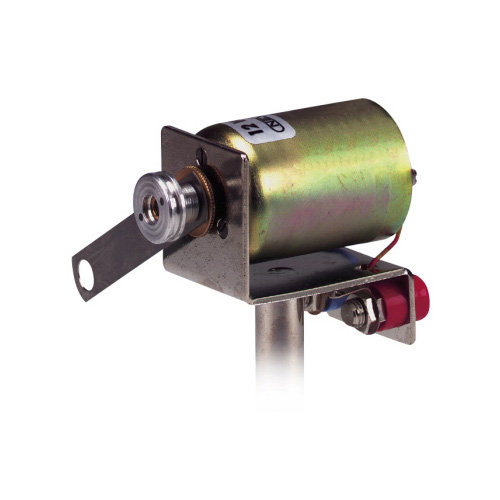

DC Motor 12V

The DC Motor 12V is a compact experiment motor that can also be used as a tachogenerator, oscillation generator or for the excitation of rove waves.

The motor has a coreless rotor and thus has a high starting torque at a lower moment of inertia. It is characterised by a very short starting time, smooth running and low running noise. On its axis, the motor has a threaded bush with a screw-on retaining pulley, meaning plates and levers too can be fixed on to the axis.

Specifications

• Nominal voltage/current: 12V/260mA DC
• Run-up voltage/current: 0.5V/45mA DC
• Power consumption: 3.6 W
• Nominal speed: 3900rpm
• Nominal rated torque: 0.5Ncm
• Direction of rotation: Reversible
• Dimensions in mm: approximately 130x55mm²
• Weight: approximately 200g
