digital spectrometer ld

The Digital Spectrometer LD is well suited for quantitative analysis of emission and absorption spectra, for recording transmission curves and performing measurements in calorimetry and kinetics. Incident light from a fibre-optic cable is dispersed into a spectrum by a Czerny-Turner monochromator and projected from there onto a CCD detector.

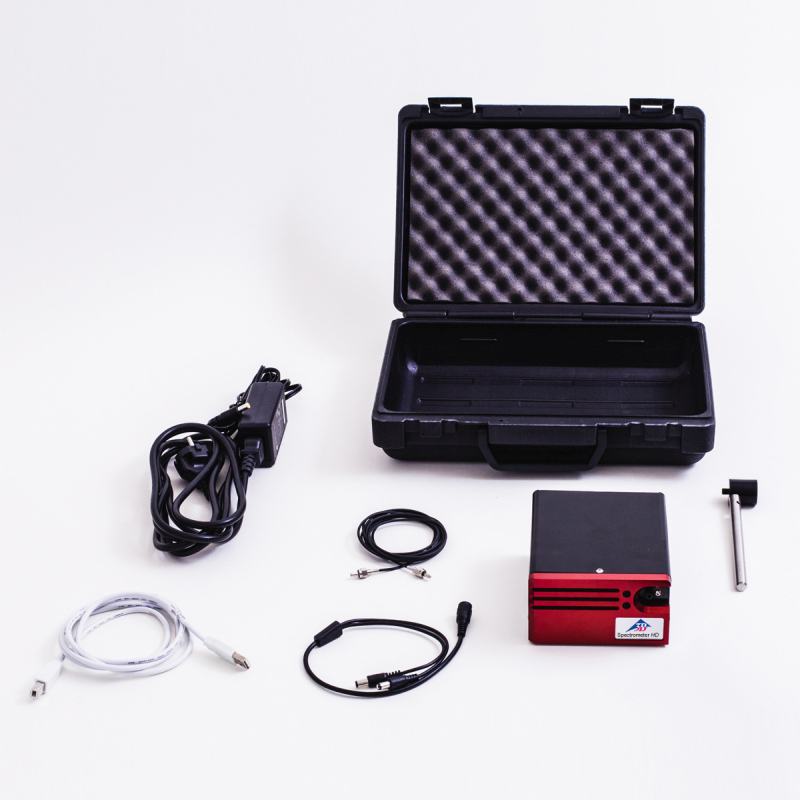

User-friendly measurement and evaluation software enable simultaneous recording and analysis in real-time, while the built-in software for Windows 2000/XP/Vista/7/8 32- and 64-bit versions starts running as soon as the sensor is connected to the computer via a USB cable. Includes plug-in power supply and holder for fibre-optic cable.

uses of the digital spectrometer Ld

The Digital Spectrometer LD is suitable for experiments on a variety of topics, including:

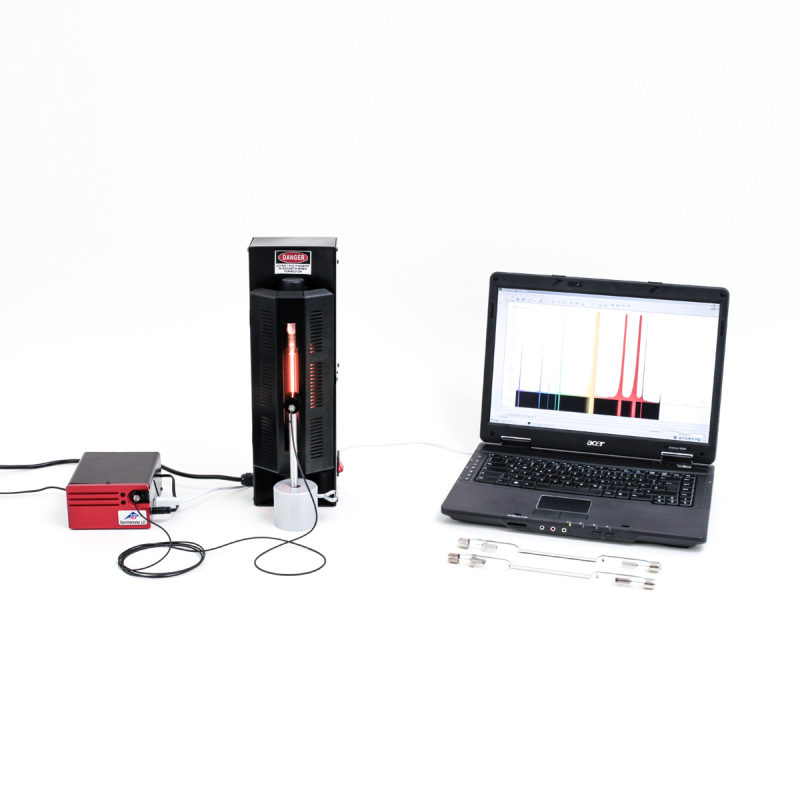

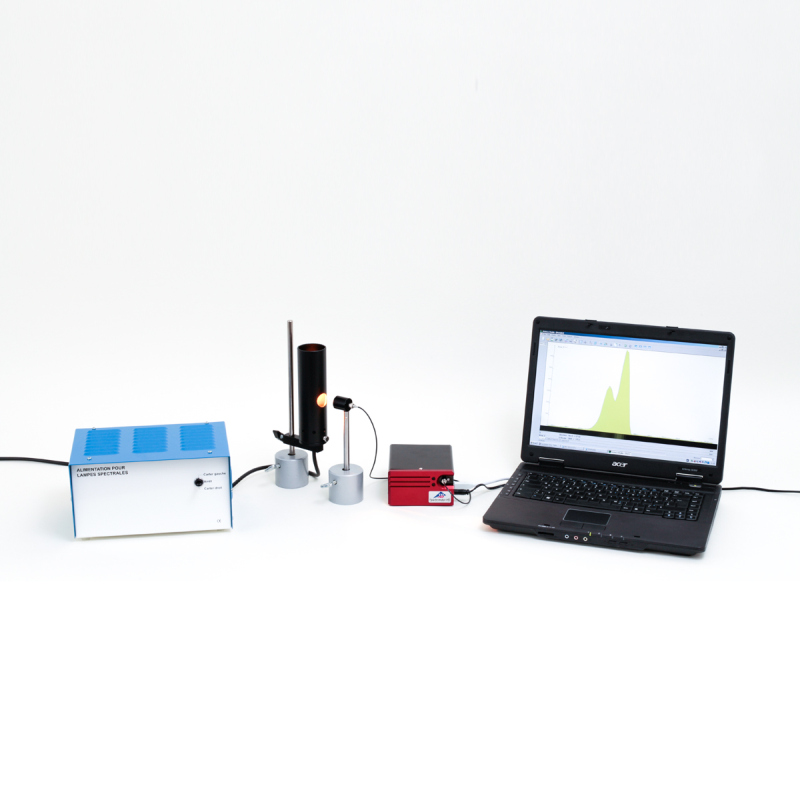

• Line spectra, continuous spectra
• Black-body radiators, Wien’s law
• Emission spectrum of sodium
• Flame spectra
• Transmission spectra of solid bodies and liquids
• Kinetics
• Beer-Lambert law

features of the digital spectrometer ld

• LD Digital Spectrometer for quantitative analysis of emission and absorption spectra
• Plug & play: no software installation or drivers required
• Connect up your spectrometer and the spectrum is obtained immediately

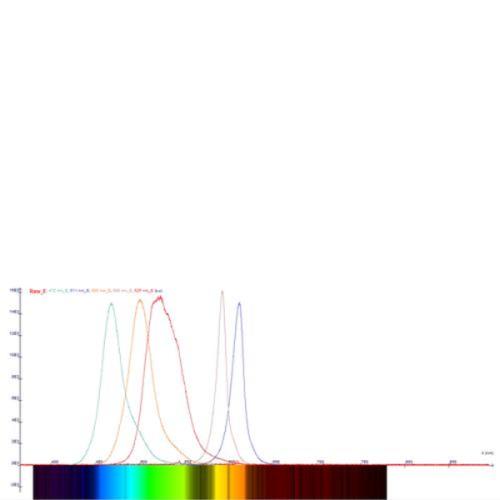

• Measurement and evaluation in real-time
• Simple and practical software with built-in wizards and powerful evaluation functions
• Internal memory for measured data
• Spectra of high quality and signal stability
• Highly stable metal casing with built-in entry slit
• Internal beam paths and the principle of operation can be viewed by opening the lid of the casing

specifications of the digital Spectrometer

• Grating: 600 lines/mm
• Spectral range: 350 – 900nm
• Spectral resolution: 1nm (for resolution of sodium doublet)
• Accuracy: 1 pixel per 0.15nm
• CCD detector: 3600 pixels
• Resolution: 16 bit
• Integration time: 0.1 to 60s
• Entry slit: 40µm metal
• Interface: USB 2.0
• Connectors: SMA 905
• Fibre-optic cable: 2m
• Mains voltage: 100 – 240V
• Dimensions: 133 x 120 x 60mm
• Weight: 950g
