Electrolytic Trough

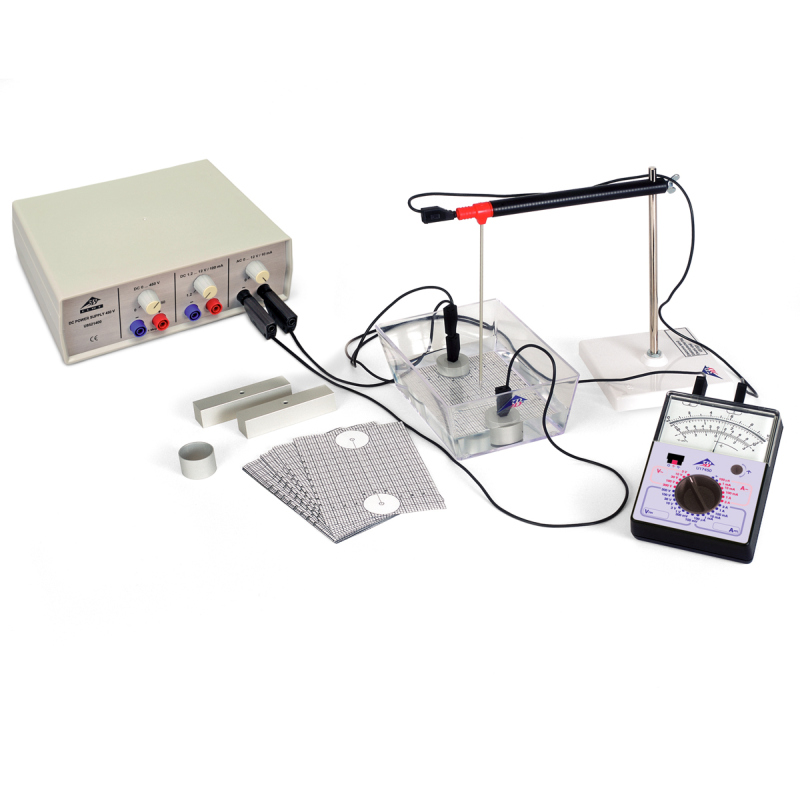

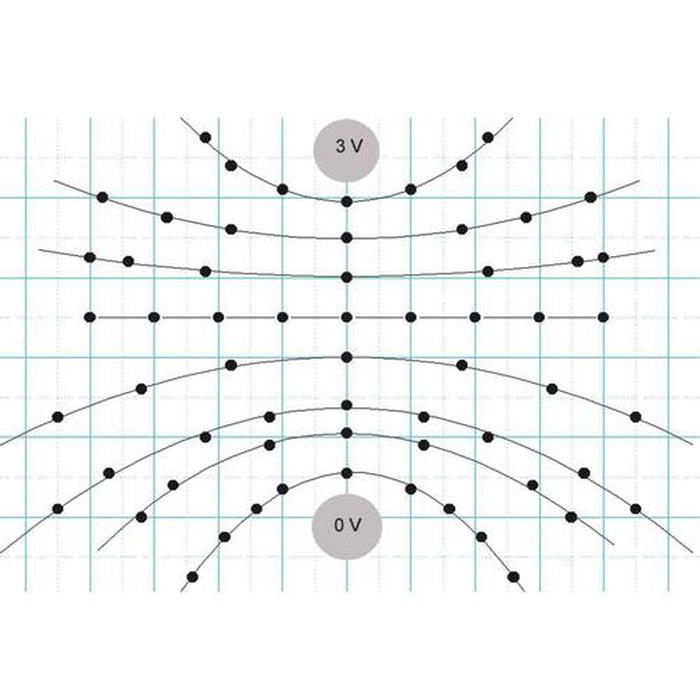

The Electrolytic Trough is an equipment set for recording equipotential lines of electric fields, as displayed in the second picture. Electrodes of different shapes can be used to measure equipotential lines for a plate capacitor, dipole, induced surface charge and a Faraday beaker.

Features of the Electrolytic Trough

• Equipment set for recording equipotential lines of electric fields
• Electrodes of different shapes can be used to measure these lines
• Requires a DC power supply and a Multimeter
• Trough dimensions: approx. 160 x 105 x 65mm

Contents of the Electrolytic Trough

• 1 x Plastic trough
• 1 x Stand with measurement electrode
• 2 x Bar electrodes
• 2 x Round disc electrodes
• 1 x Ring electrode
• 20 x Sheets of millimetre-grid paper

Required Equipment

• DC Power Supply 450V
• Analogue Multimeter

Delivery Information

The Electrolytic Trough is usually delivered within 3 to 5 working days of ordering via UPS courier.
