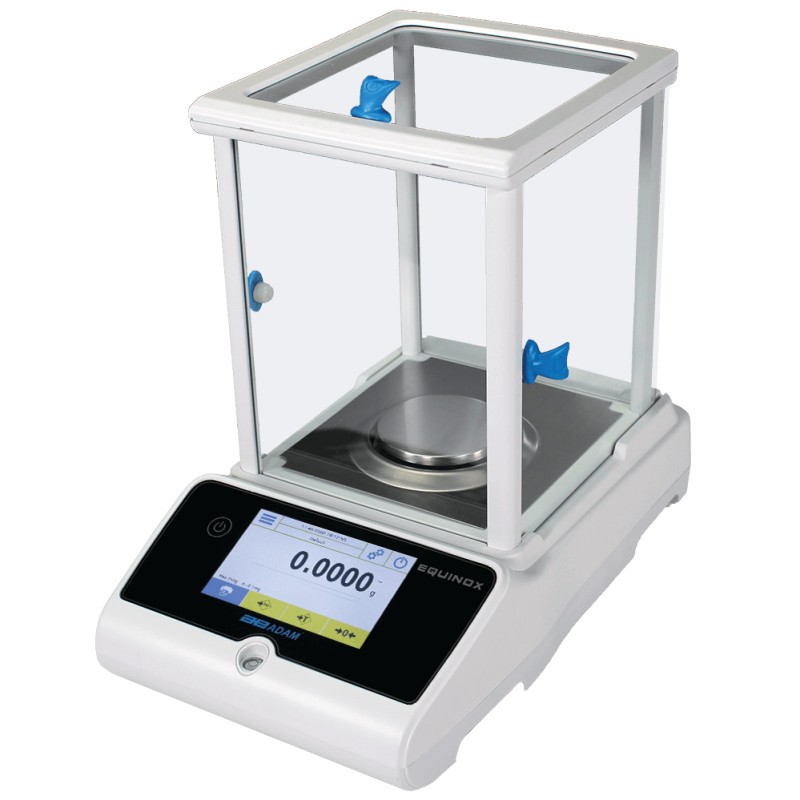

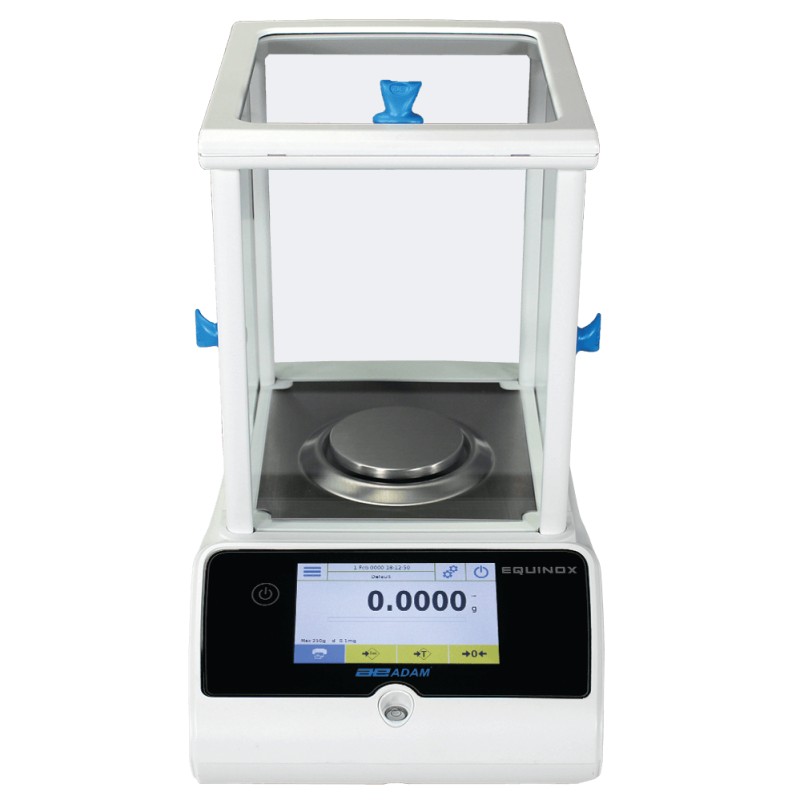

Equinox EAB 224i Semi-Micro and Analytical Balance

Featuring a capacity range of 10mg - 220g, and a readability of 0.0001g, the Equinox EAB 224i Semi-Micro and Analytical Balance is a highly accurate and versatile laboratory scale. Its icon based display is incredibly easy to operate, while its high level of precision makes it ideal for measuring small or fine powders in industries like pharmaceuticals.

Ideal For Measuring Small Samples

Semi-micro balances are typically used to measure smaller samples to a highly precise figure. They have more detailed readabilities (i.e. measurements will have more decimal places) than analytic balances, making them ideal for dealing with light or fine samples. However, they are not quite as precise as micro balances.

Applications for the Equinox EAB 224i Semi-Micro and Analytical Balance

Designed to deliver highly precise measurements in stable settings, the Equinox EAB Semi-Micro Analytical Balance can be used for a number of lab-centred applications, including:

• Quality Assurance
• Science Education
• Research
• Production and Manufacturing
• Precision Counting
• Textiles

What Is the Capacity of The Equinox Balance?

The capacity of the Equinox Balance ranges from 10mg - 220g, with a readability of 0.0001g. It can therefore be used to measure a fairly wide range of masses, and will still return a highly precise figure.

How Do I Operate the Equinox EAB 224i Semi-Micro and Analytical Balance?

Featuring a coloured 4.9" (800 x 480 pixels) touch-screen and an icon-based menu, the Equinox Balance is easy to configure and operate. You can find detailed information on the set-up and use of your Equinox EAB Balance in the PDF Instruction Manual below:

User Instructions

How Do I Calibrate the Equinox EAB 224i Semi-Micro and Analytical Balance?

The EAB 224i Balance is fitted with in-built internal self-calibration, so no manual calibration is required. This balance is therefore ideal for use in busy, fast-paced environments as the balance can be programmed to re-adjust itself if there are changes in the environment or if there is a sudden loss of power.

Date and Time Printouts for Data Traceability

To enable proper data tracking according to Good Laboratory Practise (GLP) guidelines, printouts supplied by the Equinox EAB are marked with the date and time. This can help you maintain efficient, organised operation in laboratory settings.

Security Function

A password protection function ensures you can protect your data from unauthorised access. This also allows you to protect your settings as a user's password must be entered before the balance's functions can be altered on a specific account.

Specifications of the Equinox EAB 224i Semi-Micro and Analytical Balance

• Capacity: 220g
• Readability: 0.0001g
• Repeatability: 0.0001g
• Calibration: Internal Automatic Calibration
• Pan Size: 80mm diameter
• Power Supply: 24V 50/60Hz 500mA adapter (AC adaptor included with purchase)
• Interface: RS-232 (for computers and printers), USB (for memory cards etc.)
• Total Weight: 7.2kg
• Weighing Units: g, mg, ct, GN, lb, oz, dwt, mm, ozt, tl.H, tl.S, tl.T, T and custom unit
• Time to Stabilisation: 4 seconds
• Materials: ABS Plastic
• Linearity: 0.0003g
• Operating Temperature: 10° to 30°C
• Display Size: 4.9" (800 x 480 pixels)
• Dimensions: 224 x 374 x 338mm (WxDxH)

Key Features and Benefits

• 4.9" colour touch-screen display is easy to operate and read
• Glass shield protects against vibration, draughts and static
• Printouts are marked with date and time for good data tracking practise
• Digital filtering function allows you to minimise the effect of vibrations and other environmental disturbances
• 3000 item database allows you to save items, sample weights and check weighing limits
• In-built tare function (resets measurement to zero) allows you to measure samples with containers, and improves repeatability
• RS-232 interface enables straightforward connection to computers and printers
• Security measurements protect data and prevent unwanted setting changes
• Spirit level and adjustable feet for easy set-up
• Multilingual display makes balance more widely accessible

Are Other Models Available?

The Equinox EAB Semi-Micro and Analytical Balance is available in nine other models, each with a varying maximum capacity or calibration type. The table below showcases these differing features and contains a link to each model.

Calibration Certificate

All Adam Equipment scales and balances are calibrated before dispatch, and information on their performance and accuracy is recorded on their calibration certificates. You must purchase this certificate at the same time as your scale or balance by ticking the Adam Equipment Calibration Certificate box at the top of the page.
