helium-neon laser

The Helium-Neon Laser (He-Ne Laser) is a monochromatic, coherent light source for optical experiments, e.g. on diffraction, interference, and hologram reconstitution, and can be combined with a microscope objective for diverging the beam.

benefits of the helium-neon laser

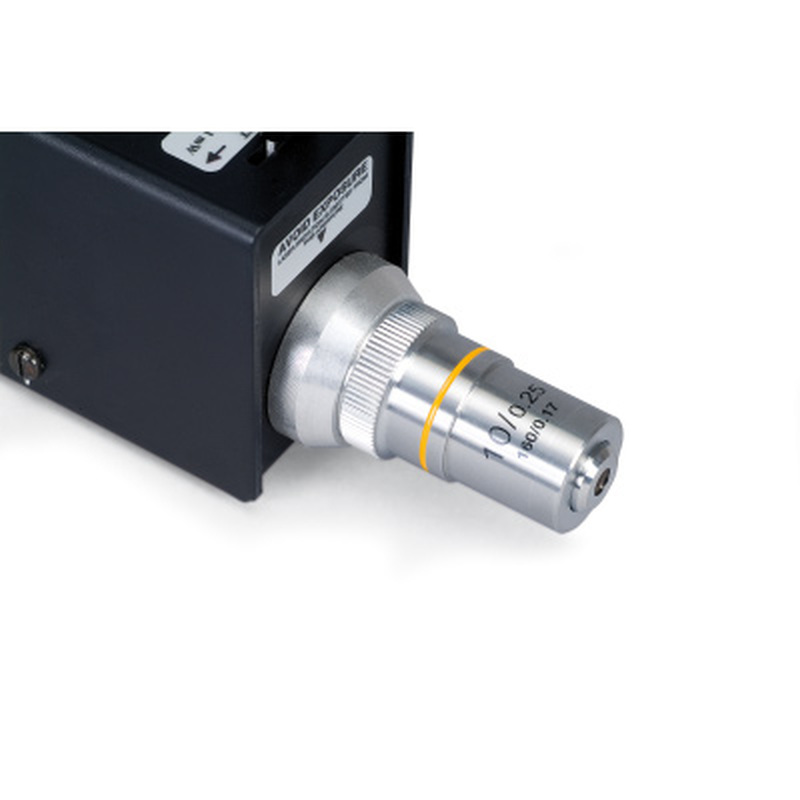

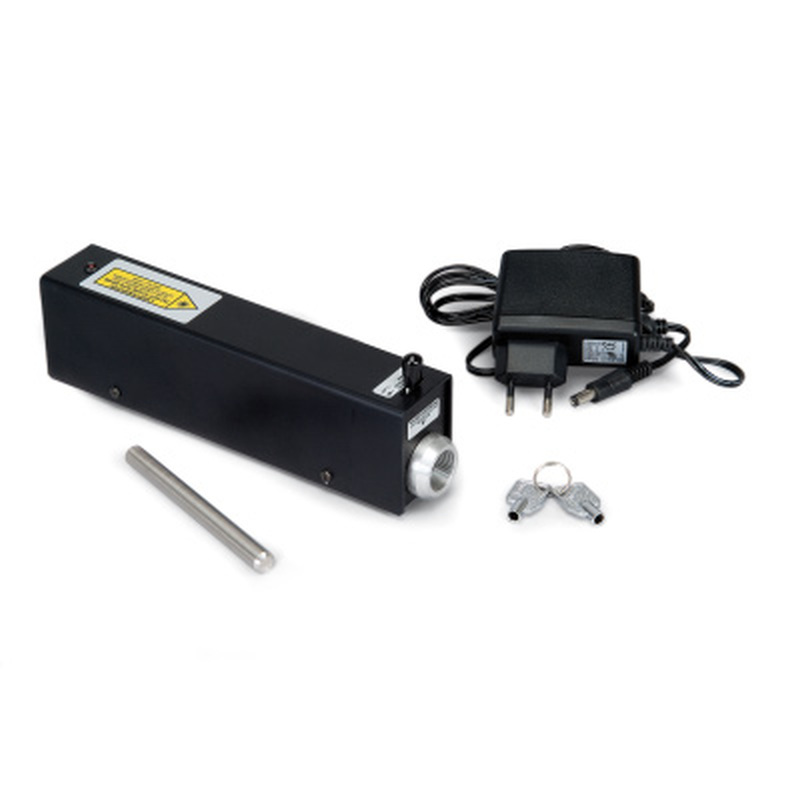

The Helium-Neon Laser is a high quality product suitable for a range of optical experiments and demonstrations. It comes in an anodised metal housing with a key switch, neutral filter for attenuating beam, two stand rods and a power supply unit. The beam can be widened by attaching the Achromatic Objective to the beam aperture, as shown in the second picture.

features of the helium-neon laser

• Monochromatic, coherent light source for a range of optical experiments
• Ideal for diffraction, interference and hologram reconstitution
• Anodised metal housing with key switch and a neutral filter for attenuating beam
• Comes with two keys, a long stand rod and a short stand rod, as well as a transformer
• Microscope objectives can be attached to widen the beam

specifications of the helium-neon laser

• Laser protection class: II
• Ouput power: 0.2mW (with neutral grey filter), <1mW (without neutral grey filter
• Wavelength: 633nm
• Beam diameter: 0.48mm
• Radiation divergence: 1.7mrad
• Mode: TEMoo
• Polarisation: random
• Service life: >12000 hours
• Plug-in power supply: 12V DC, 1A
• Dimensions: approx 230 x 55 x 90mm
• Weight: approx. 0.8kg

contents

• 1 Helium-Neon Laser
• 2 keys
• 1 long stand rod
• 1 short stand rod, 6-edges
• 1 transformer 12V
