High Voltage Coil D

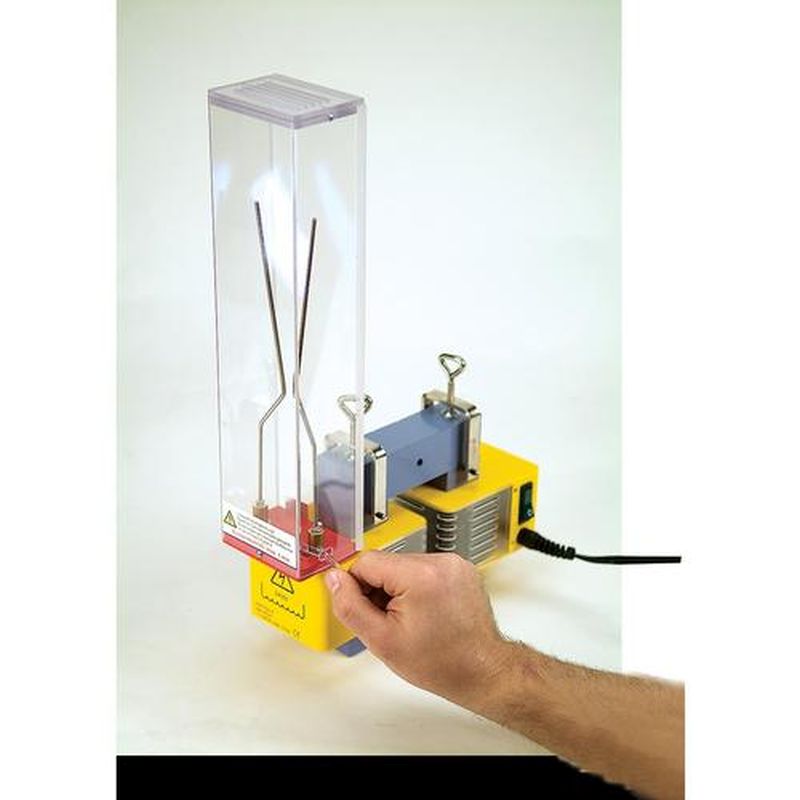

The High Voltage Coil D is a secondary coil suitable for use with the transformer core D. The coil generates high voltages, creating a spark to be discharged between two horned electrodes. The electrodes are shielded and the coil is cased in an impact-resistant plastic housing to ensure it is safe to touch and handle.

Features of the High Voltage Coil D

• Secondary coil for the transformer core d
• Generates a high voltage
• Two horned electrodes
• Voltage creates a spark
• Electrodes are shielded for safety
• Impact-resistant plastic housing
• Safe to touch
• Spark caused between the two electrodes

Technical Specifications of the High Voltage Coil D

• Weight: 1.6kg
• Number of turns: 24000
• Open-circuit voltage: 9200V
• Resistance: 10kΩ
• Maximum current: 0.02A
• Inductance: 28H

Required Equipment for the High Voltage Coil D

• Transformer Coil D
• Mains Coil D with Connecting Lead (230V, 50/60Hz) OR Mains Coil D with Connecting Lead (115V, 50/60Hz)
