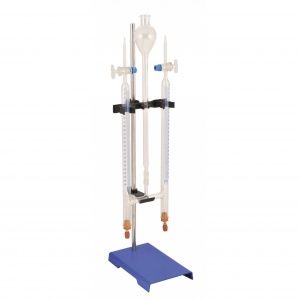

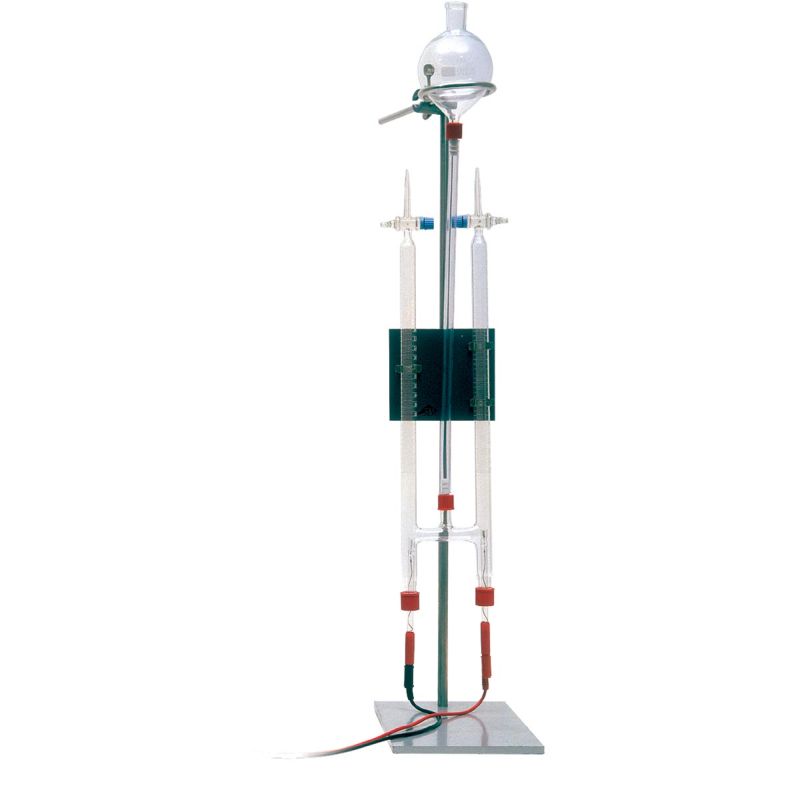

Hofmann's Voltameter

The Hofmann's Voltameter is used for the electrolysis of water, the determination of the gases formed and for establishing Faraday's laws. The voltameter is constructed using two gas collection tubes connected by plastic hosing. A levelling bulb compensates for pressure to ensure an exact measurement of the gas volumes. Electrodes are mounted securely by the use of GL threads.

Features of the Hofmann's Voltameter

• Apparatus designed for the electrolysis of water
• Establishes Faraday's laws
• Two scaled gas collection tubes
• Flexible plastic hose used for joining tubes
• Levelling bulb for pressure compensation
• Retaining plate
• GL threads for secure mounting of electrodes
• Measures the volume of gases

What does the Hofmann's Voltameter Contain?

• 1 x gas collection tubes
• 2 x platinum electrodes, 4mm sockets
• 1 x plastic hose with levelling bulb
• 1 x universal bosshead
• 1 x stand baseplate with rod and retaining plate

Technical Specifications of the Hofmann's Voltameter

• Dimensions: 800 x 150mm²
• Baseplate dimensions: 250 x 160mm²
• Rod: 750 x 12mm diameter
• Retaining plate: 120 x 110mm²
• Weight: 1.15kg

Compatible Equipment with the Hofmann's Voltameter

• DC Power Supply, 0-20V, 0-5A (230V, 50/60Hz) OR DC Power Supply, 0-20V, 0-5A (230V, 50/60Hz)
