laser diode driver and temperature control

The Laser Diode Driver and Temperature Control is a highly precise, safe and cost-efficient operating solution for continuous wave (cw) and pulsed diode lasers. The power supply unit is designed for current-stabilised control of the laser diode and is also equipped with a control unit for laser diodes controlling optical beam power in cw-mode by means of the integrated photodiode input.

In pulsed mode the laser diode can be operated with the freely configurable built-in oscillator or externally using the modulation input. The temperature controllers are designed as PID controllers and configured for standard operation with NTC and Pt100 sensors. The use of silicon temperature sensors or other types is equally possible simply by altering the software configuration.

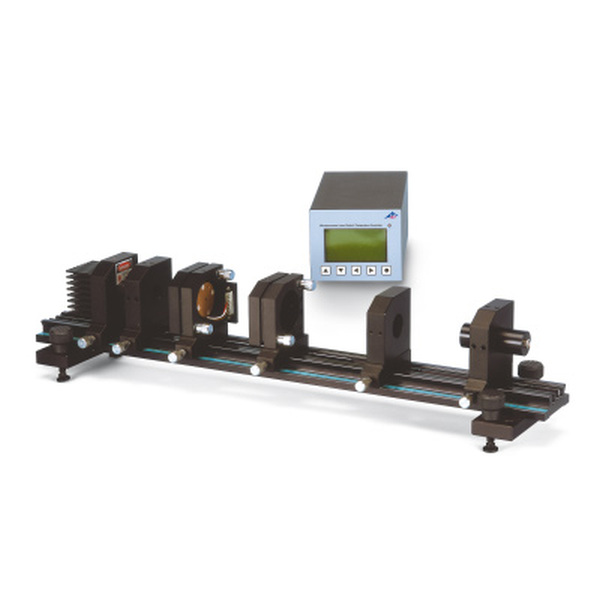

Please note: The optical bench is not included.

features of the laser diode driver and temperature control

• Precise current-controlled continuous wave and pulse-type laser driver
• Two TEC drivers with PID controllers
• Digital and analogue modulation inputs
• Multiple safety circuits
• Stored configuration (EEPROM)
• Very low power dissipation due to bias voltage control in cw-mode
• Digital control using isolated RS232 serial interface

specifications of the driver and temperature control

       Laser

• Laser current range: 0 - 2500mA
• Laser current resolution: 1mA
• Laser current accuracy: <1mA
• Laser current noise: <60µs
• Pulse rise time: <10µs
• Pulse fall time: <5µs
• Voltage range: 1.2 - 5V
• Current limit: adjustable between 0 - 2500mA
• External digital modulation input: TTL

       TEC Driver

• Peltier current: max. -4 to +4A
• Peltier voltage: max. 15V
• Peltier current limit: adjustable between 0 - 4A
• Peltier current resolution: 1mA
• Temperature control accuracy: <10mK

       General Specs

• Over-temperature protection: for driver and laser
• Supply voltage: 24V / 3A DC
• Mains voltage: 100 up to 240V AC
• Dimensions: 85 × 105 × 210mm
