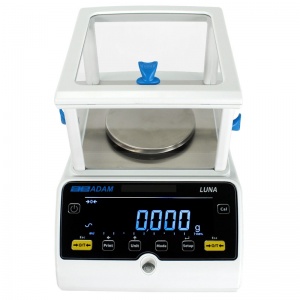

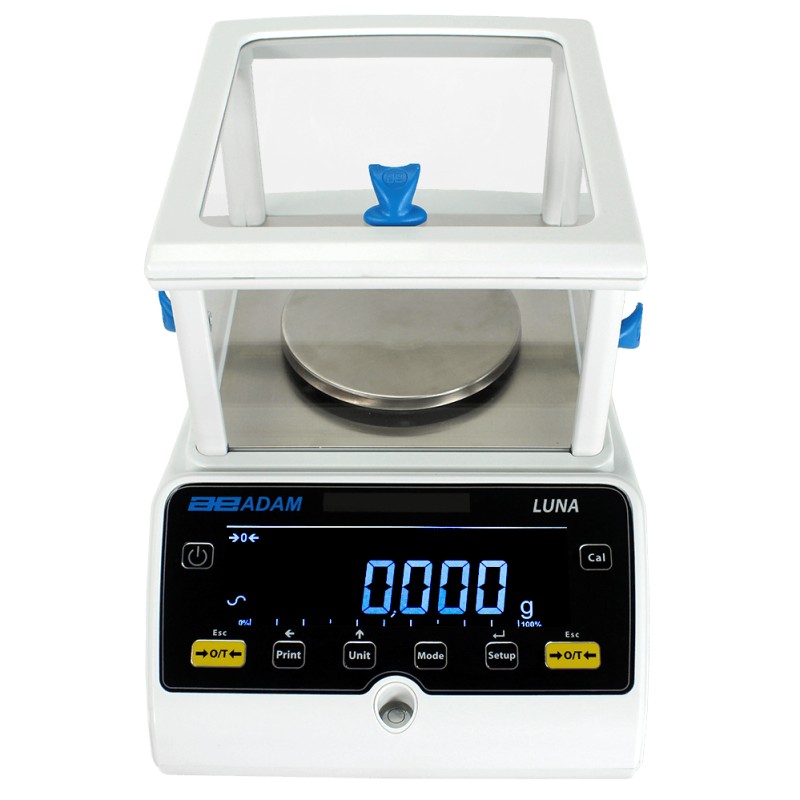

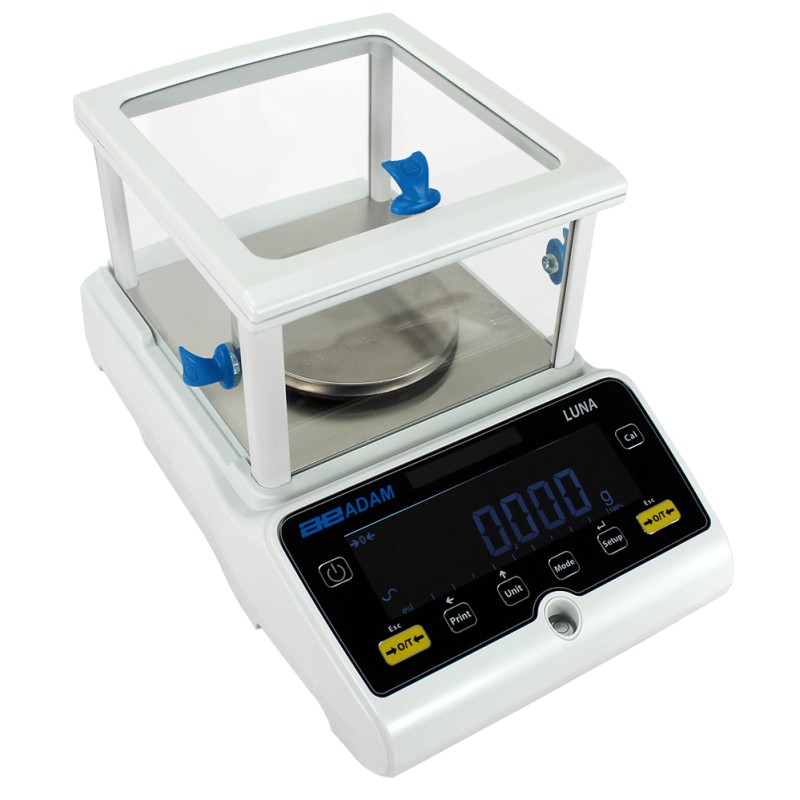

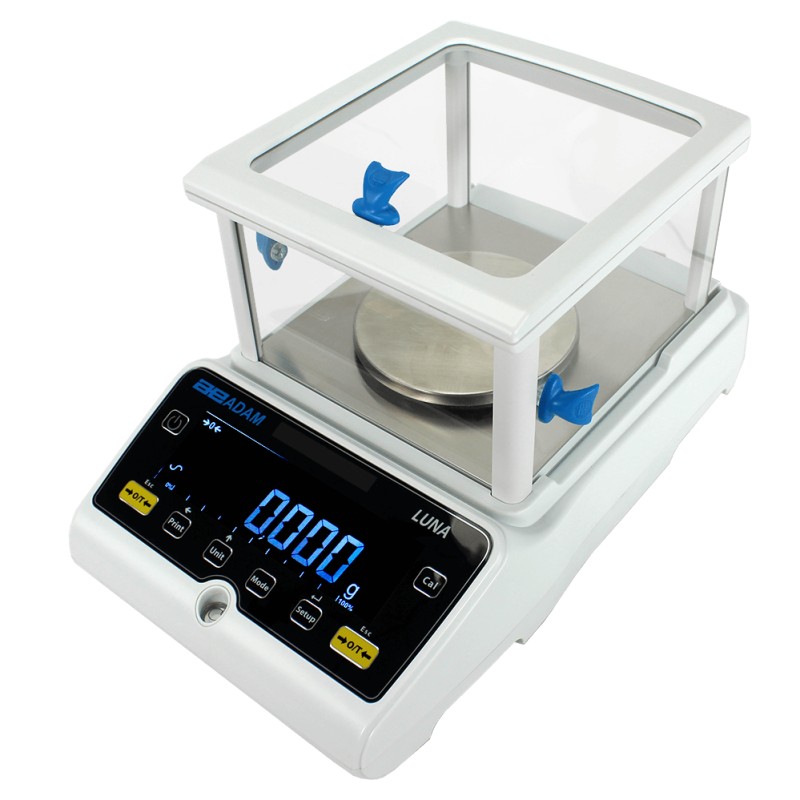

Luna LPB 223i Precision Balance (220g Capacity)

A brilliant choice for any laboratory, the Luna LPB 223i Precision Balance (220g Capacity) is a durable top-loading balance with many high-tech features. It is self-calibrating, able to measure substances up to 220g in weight, and is very easy to clean and maintain due to its sealed keypad and stainless steel holder.

Please note that a calibration certificate for this device must be purchased at the same time by ticking the box at the top of the page. You cannot purchase this certificate for a balance or scale that has already been ordered.

What Are Precision Balances?

Precision balances are also known as 'top loading balances' and offer a good compromise between precision and high capacity. They don't offer the same level of readability as analytical or semi-micro balances, but are still very precise compared to standard scales and are usually able to hold larger amounts of a substance at once.

Applications for the Luna LPB 223i Precision Balance

The Luna LPB Precision Balance has a decently sized pan for holding larger loads, and is easy to clean after accommodating messy substances like powders. It is therefore suitable for carrying out vital tasks in chemical or biological labs, including:

• Weighing
• Parts counting
• Percentage weighing
• Dynamic weighing (e.g. liquids, animals)
• Determining density
• Checkweighing
• Cumulative weighing

How Do I Operate the Luna LPB 223i Precision Balance?

With colour coded navigation and a bright, clear screen, the Luna LPB 223i Precision Balance can be used with little coaching. For more information on the set-up and use of your Precision Balance, take a look at the PDF Instruction Manual below:

User Instructions

What Is the Capacity of the Luna LPB 223i Precision Balance?

The Luna LPB 223i Balance has a relatively large maximum capacity of 220g, yet still returns a precise result with a readability of 0.001g. Additionally it has a 120mm diameter pan, so can be used for a number of lab-based applications, including weighing liquids or medium-sized sample loads.

How Do I Calibrate the Luna LPB 223i Precision Balance?

The Luna LPB 223i Precision Balance offers both self-calibration or external calibration. Self-calibration can help you save time before tests, but you may want to use external calibration to verify measurements or if your laboratory follows a manual calibration process.

Date and Time Printouts for Data Traceability

In adherence with Good Laboratory Practise (GLP) guidelines, data printouts supplied by the Luna LPB Balance are time and date stamped for improved traceability. This can help you keep track of your processes for a more functional, organised laboratory environment.

Easy to Use

The Luna LPB Balance is full of advanced features, yet is still able to provide intuitive operation. It features colour-coded icons which mark commonly used functions, and has a bright, clear display with straightforward navigation.

Stable Design

To ensure your results are as reliable as possible, its important that your balance is well-aligned and stable before use. Supplied with a level indicator and adjustable feet, the Luna LPB 223i Precision Balance makes this set-up process quick and simple.

What Security Features Does This Balance Have?

As this balance is a valuable, high tech piece of lab equipment it has been fitted with a security feature to help reduce the risk of theft. This consists of a security slot for Kensington-type locks and cables, which can prevent a balance from being taken out of a lab or work place.

Specifications of the Luna LPB 223i Precision Balance

• Capacity: 220g
• Readability: 0.001g
• Repeatability: 0.002g
• Calibration: Internal Automatic/External Calibration
• Pan Size: 120mm diameter
• Power Supply: 18VDC 50/60Hz 830mA adapter
• Interface: RS-232 (for computers and printers), USB (for memory cards etc.)
• Total Weight: 4.1kg
• Weighing Units: mg, g, ct, GN, dr, ozt, dwt, mm, tl.T, tl.H, tl.S, T, custom unit
• Time to Stabilisation: 2 seconds
• Materials: ABS Plastic
• Linearity: 0.003g
• Operating Temperature: 15° to 35°C
• Display: Backlit LCD screen featuring 24mm high figures
• Draught Shield Dimensions (WxDxH): 192 x 195 x 115mm
• Overall Dimensions (WxDxH): 224 x 374 x 219mm

Key Features and Benefits

• Backlit display improves visibility in even low lighting
• Stainless steel pan is easy to clean after use
• Printouts are marked with date and time for improved data tracking
• Sealed keypad prevents the ingress of dirt of liquids
• Security slot of Kensington-type lock for theft prevention
• Intuitive navigation and colour-coded buttons enable easy operation
• Digital filtering function allows you to prepare balance for living, moving organisms
• RS-232 interface enables straightforward connection to computers and printers
• Spirit level and adjustable feet make it easier to attain reliable results
• Multilingual display makes balance more widely accessible
• Hold function allows you to freeze measurement if they aren't being used straight away

Are Other Models Available?

The Luna Precision Balance is available in 19 other models, each with a varying maximum capacity or calibration type. The table below showcases these differing features and contains a link to each model:

Additional Documentation

Calibration Certificate

All Adam Equipment scales and balances are calibrated before dispatch, and information on their performance and accuracy is recorded on their calibration certificates. You must purchase this certificate at the same time as your scale or balance by ticking the Adam Equipment Calibration Certificate box at the top of the page.
