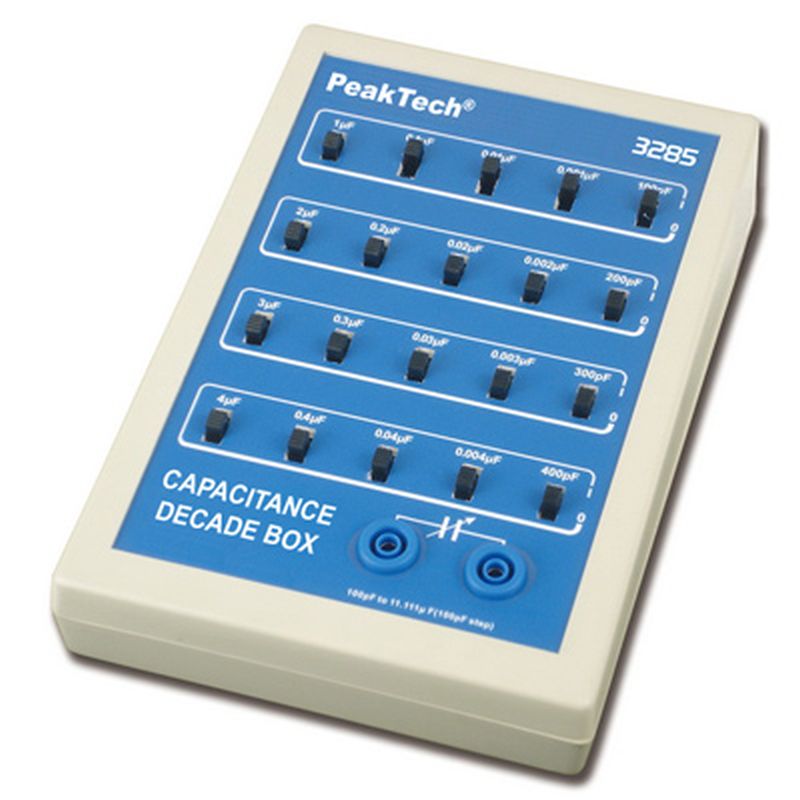

PeakTech Capacitance Decade

A capacitance decade box has the ability to store an electrical charge and the PeakTech Capacitance Decade is no exception. Housed in impact-resistance plastic, the capacitance decade has a focus on safety. This is due to the mechanically stable components and safety sockets alongside a slide switch for setting the measurement ranges.

Features of the Peaktech Capacitance Decade

• Mechanically stable components
• Plastic housing
• Impact-resistance shell
• Slide switch for measurement settings
• 4mm safety sockets
• Safe connections
• Easy to join with any circuit

Technical Specifications of the Peaktech Capacitance Decade

• Measuring range: 100pF - 11.11µF
• Increment: 100pF
• Accuracy: 5%
• Number of decades: 5
• Limiting values: max. 50V DC
• Dimensions: 140 x 190 x 80mm
• Weight: 350g
