Set of Four Conductors for Biot-Savart Experiments

The Biot-Savart law is an equation describing a magnetic field  generated by an electric current and links various elements such as direction and length of the current and magnet.

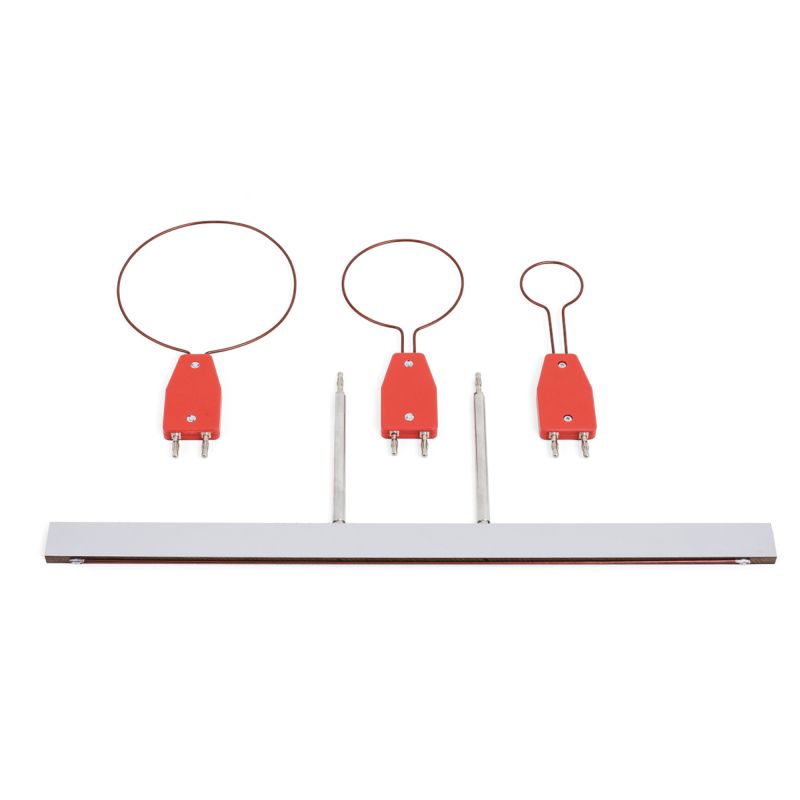

The Set of Four Conductors for Biot-Savart Experiments is ideal apparatus for experimenting with the Biot-Savart law and establishing how the magnetic flux density is calculated. The components are made up of three circular and one straight conductor of different sizes, designed for measuring and exploring the relationship between the magnetic field and the electrical current.

Features of the Set of Four Conductors for Biot-Savart Experiments

• Three circular and one straight conductor
• Compares electrical current and magnetic fields
• Measures the magnetic flux density
• Ideal apparatus for the Biot-Savart experiment
• Straightforward and easy to use

Technical Specifications of the Set of Four Conductors for Biot-Savart Experiments

• Connectors: 4mm plug
• Maximum continuous current: 20A
• Diameter of circular conductors: 120, 80 and 40mm
• Length of straight conductor: 400mm

Compatible Equipment for the Set of Four Conductors for Biot-Savart Experiments

• Holder for Plug-in Components
• Holder for Magnetic Field Sensor
• Flexible Magnetic Field Sensor OR Magnetic Field Sensor Axial/Tangential
• Teslameter E
• Optical Bench U, 600mm
• Optical Rider U, 75mm (2x)
• DC Power Supply 0-16V, 0-20A
• Pair of safety experiment leads, 75cm
