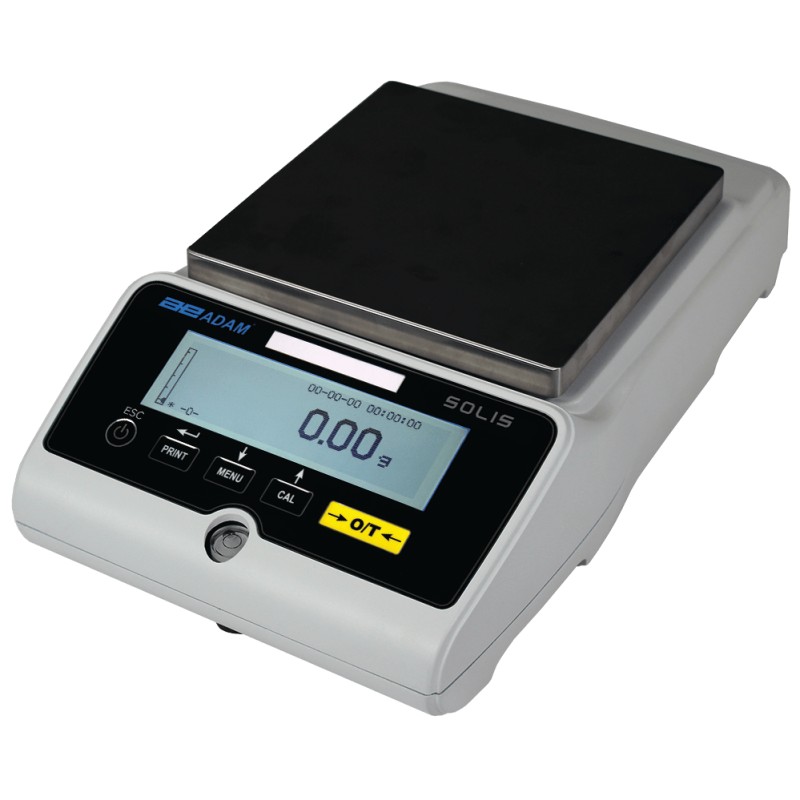

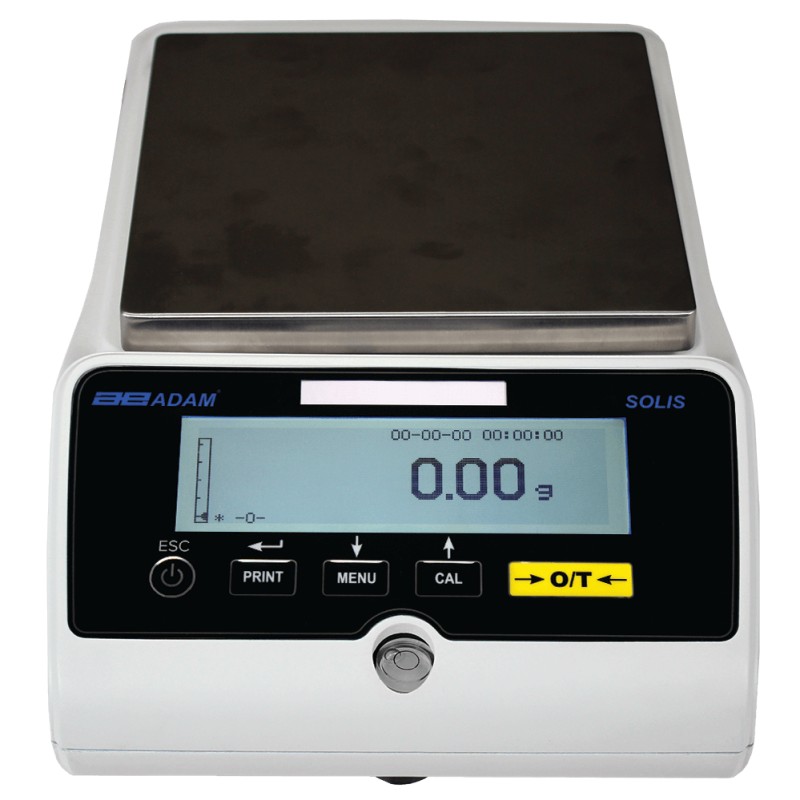

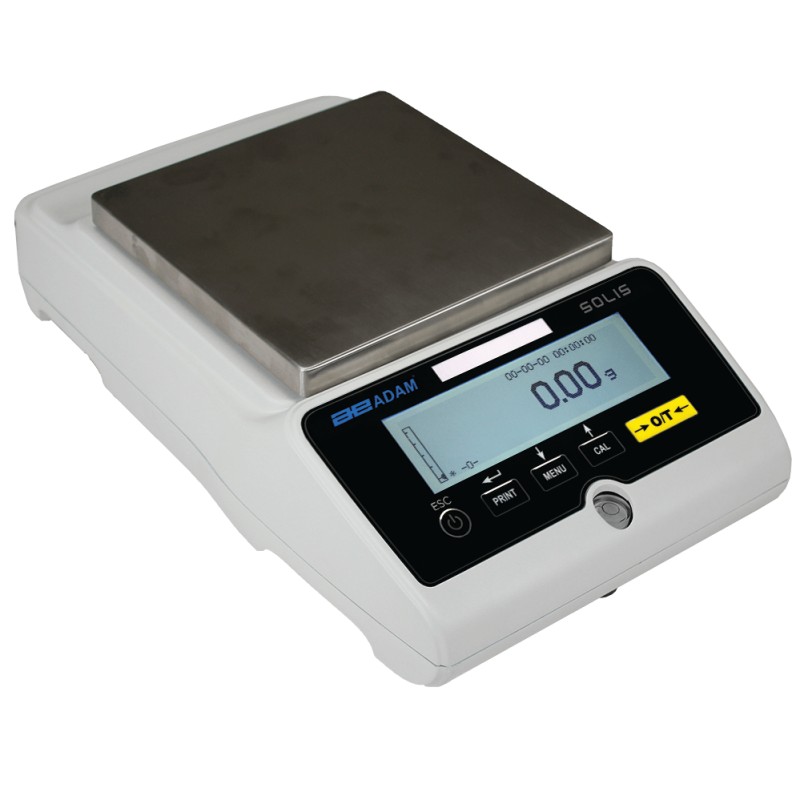

Solis STB 3202i Precision Balance (3200g Capacity)

Suitable for use in a range of industries including education, research or production, the Solis STB 3202i Precision Balance (3200g Capacity) is a high-tech top-loading balance that offers intuitive operation. It has a bright clear display, automatic calibration, and a maximum capacity of 3200g.

Please note that a calibration certificate for this device must be purchased at the same time by ticking the box at the top of the page. You cannot purchase this certificate for a balance or scale that has already been ordered.

What Are Precision Balances?

Precision balances are also known as 'top loading balances' and offer a good compromise between precision and high capacity. They don't offer the same level of readability as analytical or semi-micro balances, but are still very precise compared to standard scales and are usually able to hold larger amounts of a substance at once.

Applications for the Solis STB 3202i Precision Balance

The Solis STB 3202i Precision Balance has a capacity range of 0.5g - 3200g, yet still retains a high readability of 0.01g. As such, it is a great choice for measuring sizeable samples to a highly precise figure, and can be used for:

• Weighing
• Parts counting
• Percentage weighing
• Dynamic weighing (e.g. liquids, animals)
• Determining density
• Formulation
• Peak hold
• Checkweighing
• Cumulative weighing

How Do I Operate the Solis STB 3202i Precision Balance?

With colour-coded navigation and a bright, clear screen, the Solis STB 3202i is very easy to use, even if you don't have a lot of technological expertise. For more information on the set-up and use of your Precision Balance, take a look at the PDF Instruction Manual below:

User Instructions

Quick and Easy to Use

Despite this balance offering a number of state-of-the-art features, it is incredibly easy to set up and operate. It has an icon-driven display and clearly marked arrow keys for straightforward navigation, while its large pan allows you to measure bigger samples all at once.

Accessible Interface

The bright, high resolution display ensures you can read your results with ease, even if you don't have 20/20 vision. On top of this, it is also programmed to cater to different languages, and can therefore be operated immediately by non-English speakers.

What Is the Capacity of the Solis STB 3202i Precision Balance?

The Solis 3202i Precision Balance has a maximum capacity of 3200g, yet still returns a precise result with a readability of 0.01g. Its square 185 x 185mm pan is large enough to hold large amounts of a substance for more efficient measuring.

How Do I Calibrate the Solis STB 3202i Balance?

This Solis Balance is self-calibrating, meaning it does not require manual calibration before use. While this type of balance is typically more expensive, they are often desirable in high-end labs as they can improve testing consistency and save time on preparations.

Date and Time Printouts for Data Traceability

In adherence with Good Laboratory Practise (GLP) guidelines, data printouts supplied by the Solis SPB are time and date stamped for improved traceability. This can help you keep track of your processes for a more functional, organised laboratory environment.

What Security Features Does This Balance Have?

To prevent theft, this balance comes with a security slot for Kensington-type locks and cables. This can make it harder for the balance to be stolen when left unattended.

Specifications of the Solis STB 3202i Precision Balance

• Capacity: 3200g
• Readability: 0.01g
• Repeatability: 0.01g
• Calibration: External Calibration
• Pan Size: 185 x 185mm
• Power Supply: 9VDC 50/60Hz 1A adapter
• Interface: RS-232 (for computers and printers), USB (for memory cards etc.)
• Total Weight: 6.7kg
• Weighing Units: g, mg, lb, oz, ct, GN, dwt, mm, ozt, T, tl.H, tl.S, tl.T, custom unit
• Time to Stabilisation: 3 seconds
• Materials: ABS Plastic
• Linearity: 0.03g
• Operating Temperature: 10° to 30°C
• Display: Backlit LCD screen featuring 24mm high figures
• Dimensions: 224 x 374 x 95mm (WxDxH)

Key Features and Benefits

• Clear, high resolution display can be read quickly and accurately
• Printouts are marked with date and time for improved data tracking
• Security slot for Kensington lock and cable combats theft
• Digital filtering can reduce the impact of vibrations
• RS-232 interface can quickly connect to computers and printers
• Spirit level and adjustable feet maximise stability
• Multilingual display can be used by speakers of different languages

Are Other Models Available?

The Solis Precision Balance is available in 10 other models, each with a varying maximum capacity or calibration type. The table below showcases these differing features and contains a link to each model:

Additional Documentation

Calibration Certificate

All Adam Equipment scales and balances are calibrated before dispatch, and information on their performance and accuracy is recorded on their calibration certificates. You must purchase this certificate at the same time as your scale or balance by ticking the Adam Equipment Calibration Certificate box at the top of the page.
