spectrophotometer s

The Spectrophotometer S is a robust spectrometer for investigating the near infra-red and infra-red regions of the spectrum between 360 and 800nm. Its removable cover allows students to see first-hand the spectrum analysis process, while a specially selected transmission grating and precision slit give high resolution for excellent results. The product makes data collection simple and effective, with intuitive software that gives real-time graphical output (no time tracking of lines).

For easier interpretation of the spectrum, each wave band is shaded with the corresponding colour. The spectrum can be viewed either as a graph or data table, and the availability of several toolbars makes it possible to set the spectrometer parameters to exactly fit the requirements of the experiment. Spectra 1 is supplied ready to use, and the unit is tested and calibrated before shipment for results you can rely on.

Please note: unit is not suitable for absorption spectroscopy.

features of the spectrophotometer s

• Robust spectrometer for investigating regions of the spectrum between 360 and 800nm
• Removable cover allows students to see the spectrum analysis process first-hand
• Specially selected transmission grating and precision slit give high resolution

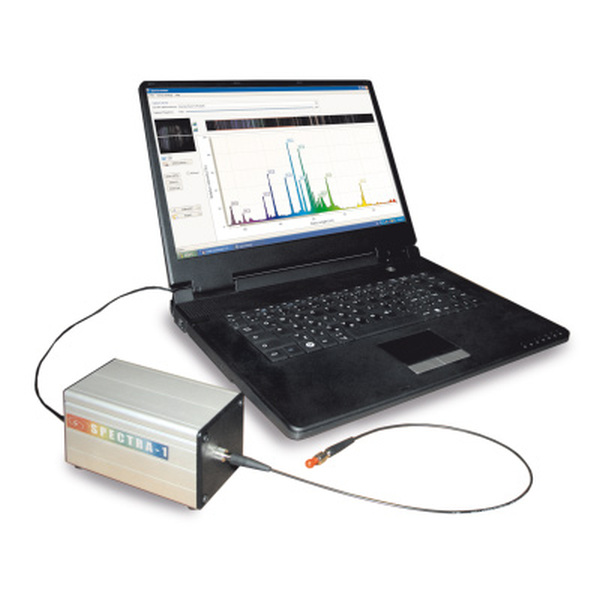

• Simple and effective data collection software gives real-time graphical output
• Spectrum can be viewed as a graph or a data table
• Unit is tested and calibrated before shipment

specifications of the spectrophotometer s

• Spectral range: 360 – 800nm
• Resolution: <2.0nm
• Slit size: 40 microns
• Sensitivity: --
• Fiber cable: 1mm diameter, 2mm w/ coating
• Pixel resolution: < 0.5nm
• Software: Win XP, Vista, Win7
• Interface: USB 2.0
• Dimensions: 60 x 60 x 120mm
• Weight: 600g

contents of the spectrophotometer s

• Spectra 1 with USB cable
• Fibre optic cable
• CD containing experimental software and an instruction manual
