Stirling-Engine G

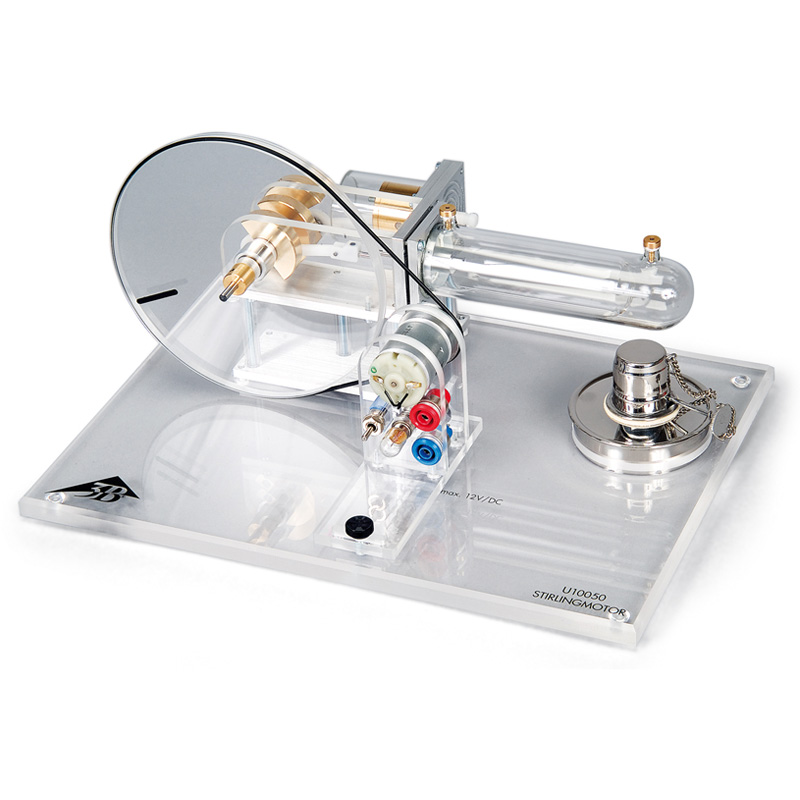

The Stirling-Engine G is a transparent Stirling Engine ideal for quantitative investigations of cyclic thermodynamic processes and specifically for understanding the Stirling cycle.

The integrated generator has a two stage belt pulley and is equipped with a switchover option for operating an integrated lamp, external loads, or demonstrating the processes of a heat pump or refrigerator. An engine generator and alcohol burner are both integrated into the build for use with methylated-spirits i.e. denatured alcohol.

Features of the Stirling-Engine G

• Recessed temperature measurement sockets
• Light barrier on flywheel
• Connection for pressure measurements
• String to measure the stroke of the power piston and determine volume
• Displacement cylinder and piston made of heat resistant glass
• Power cylinder, flywheel, and gearbox covers made of acrylic glass

Experiment Topics

• Heat engines and heat pumps
• Interdependence of gas temperature, pressure, volume
• Investigate pressure-volume (pV) diagrams and Carnot cycles
• Conversion of mechanical energy to electrical energy
• Engine efficiencies and thermodynamic losses

Advantages

• Durability and high precision thanks to the use of high quality materials
• Easily understood, transparent design allows the functioning to be viewed with ease
• Operation of a Stirling engine as a classical heat-engine

Specifications

• Power: 1 – 4W
• Idling speed: 1000rpm
• Flywheel: 140mm diameter
• Power cylinder: 25mm diameter
• Stroke of the power piston: 24mm
• Gas volume: 32 cm³ – 44cm³
• Motor generator unit: max. 12V DC, 0.43A
• Belt pulley: two stage (30mm dia., 19mm dia.)

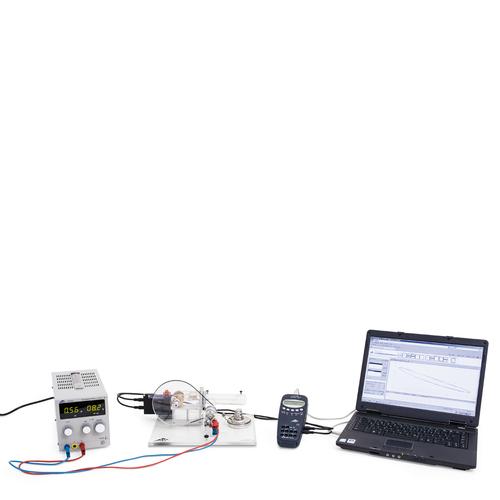

Compatible Equipment

• P1000548 Relative Pressure Sensor ±1000 hPA
• P1000568 Displacement Sensor
• P1008500 Sensor Holder for Stirling Engine G
• P1000544 3BNetlab
• P1000539 3BNETlog

Delivery Information

The Stirling-Engine G is usually delivered within 3 to 5 working days of ordering via UPS courier.
