Student Kit - Mechanics Set

The Student Kit - Mechanics Set contains the apparatus needed to carry out a range of basic mechanics experiments for lower secondary school. Detailed instructions and manuals for teachers and students are included on CD-ROM. The apparatus is stored in a rugged Gratnells tray which includes foam inserts for each piece of apparatus to ensure the apparatus is stored safely and securely.

Takes up Less Space

The experiments the Student Kit - Mechanics Set enable you to carry out are designed to take up a minimal amount of desk space - ideal for a range of environments and desk designs.

A Range Of Mechanics Experiments

This kit enables students to carry out a range of experiments on the mechanics of solids, liquids and gases. The full list of experiments possible with this kit is:

• Effects of forces
• Action and reaction
• Deformation by forces (2 experiments)
• Masses and densities of bodies
• Friction
• Second class lever
• First class lever (2 experiments)
• Fixed pulley
• Moving pulley
• Combinations of fixed and moving pulleys
• Inclined plane (2 experiments)
• Connected vessels
• Pressure in liquids
• Principle of the U-tube manometer
• Pressure due to weight of fluids
• Buoyancy in liquids
• Floating and sinking
• Air as a body
• Pressure and volume
• Temperature and volume
• Effects of atmospheric pressure

Please note: this kit requires the Student Experiments Kit - Basic Set.

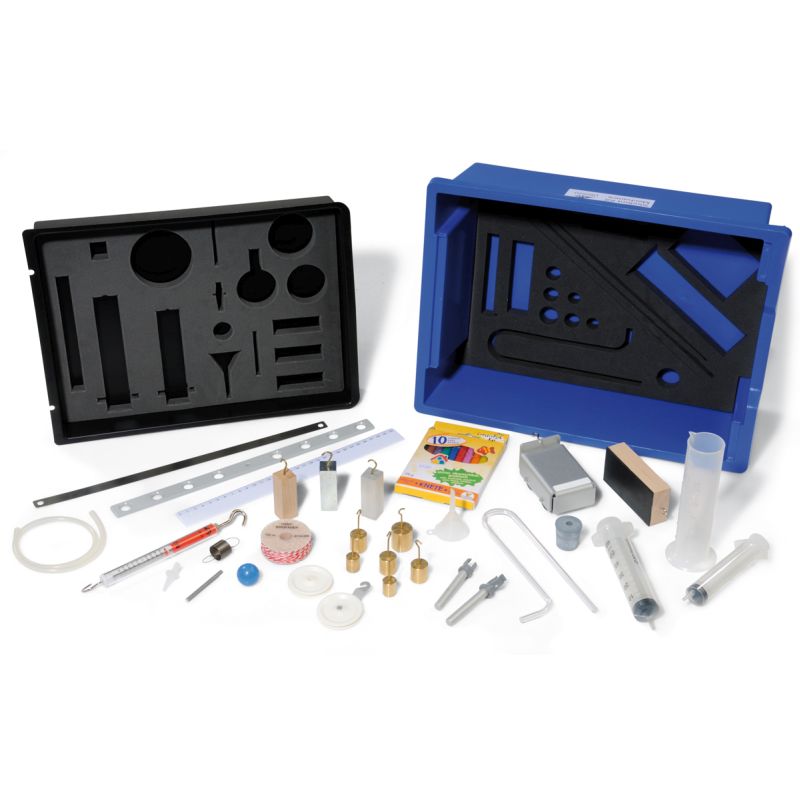

Full Contents of the Student Kit - Mechanics Set

The full contents of the Student Kit - Mechanics Set are:

• 1 x steel leaf spring
• 1 x lever arm
• 1 x ruler
• 1 x pulley
• 1 x pulley with hook
• 1 x weight - 100g
• 3 x weights - 50g
• 2 x weights - 25g
• 1 x dynamometer - 2N
• 1 x metal pivot
• 4 x pulley with cord
• 1 x trolley
• 1 x friction pad
• 1 x coil spring
• 1 x iron block
• 1 x aluminium block
• 1 x wooden block
• 1 x silicone tube - 500mm length x 3mm diameter
• 1 x tubing connector
• 1 x clip - 8mm diameter
• 1 x clip - 14mm diameter
• 1 x syringe - 60ml
• 1 x syringe - 30ml
• 1 x plastic sphere
• 1 x rubber stopper - 30mm x 31/25mm diameter
• 1 x funnel - 40mm diameter
• 1 x U-tube manometer
• 1 x measuring cylinder
• 100g modelling clay

Required Equipment

• Student Experiments Kit - Basic Set
