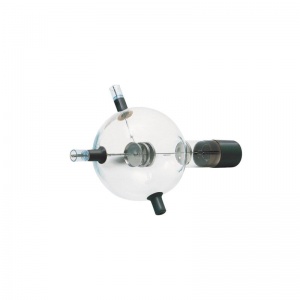

Teltron Gas Triode S

The Teltron Gas Triode S is an electron tube filled with either low pressure helium or neon gas. A thermionic cathode, anode and control grid allows for the quantitative investigations of the typical properties of a gas filled triode. Other experiments include; recording the I_A - U_A characteristics of a thyratron, dischargers and energy release of He and Ne atoms during inelastic collisions with free electrons.

Features of the Teltron Gas Triode S

• Triode filled with either helium or neon
• Low pressure gas
• Comes with a thermionic cathode, anode and control grid
• Suitable for gas-filled triode investigations
• Inelastic collisions with free electrons discharge energy
• Straightforward and easy to use

Technical Specifications of the Teltron Gas Triode S

• ​Maximum heater voltage: 7.5V AC/DC
• Maximum anode voltage: 500V
• Anode current: 10mA at 200V anode voltage
• Glass bulb: 130mm diam
• Total length: 250mm d
• Dimensions:  351 x 382 x 221mm
• Weight: 0.6kg

Required Equipment with the Teltron Gas Triode S

• Tube Holder S
• Set of 15 Safety Experiment Leads, 75cm
• Analogue Multimeter ESCOLA
• Power supply, 500V DC (230V, 50/60Hz) OR power supply, 500V DC (115V, 50/60Hz)
