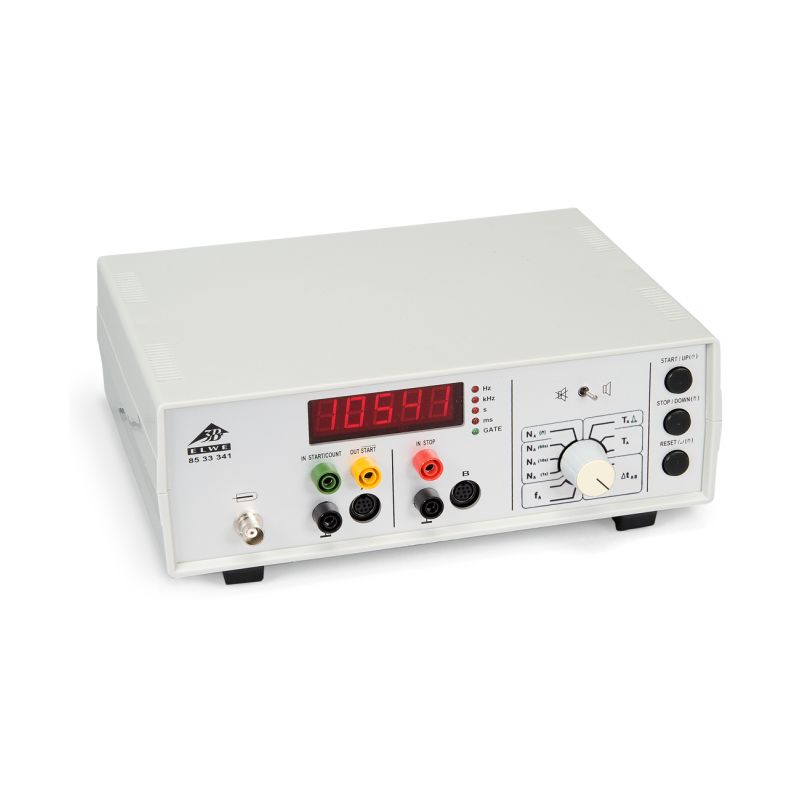

digital counter

The Digital Counter is a timer for measuring a number of factors during an experiment: the duration of motion, transition times, periods, pendulum periods and frequencies, as well as for counting events or Geiger tube pulses.

This product includes a speaker that can be turned on and off, as well as power supplies for a direct connection to light barriers, or for powering a Geiger-Müller counter. For event counting, a fixed counting period can be programmed in a range from 1 - 99999s. Counter events (start, stop) can either be triggered by a signal to the input sockets or manually via switches.

The Digital Counter comes complete with a plug-in power supply, ready for use.

technical specification

• Time measurement: 0.1ms - 99999s
• Resolution: 0.1ms/ 1ms/ 0.1s
• Frequency measurement: 1 - 100kHz, where voltage >1.5V_pp
• Resolution: 1mHz (1 - 100Hz), 1Hz (1 - 100kHz)
• Counting periods: 1/10/60/100s or manually triggered
• Input A: miniDIN 8 socket, 4mm safety sockets
• Input B: miniDin 8 socket, 4mm safety sockts
• Input voltage A: 0.5V - 15V AC
• Input voltage B: 1V - 15V AC
• Active edge: rising/falling
• Counter tube input: BNC socket
• Power supply: 550V/1MΩ
• Display: 5-digit LED display
• Operating voltage: 9 - 12V DC via plug-in power supply
• Dimensions: approx. 250 x 100 x 160mm³
• Weight: approx. 0.8kg
