interferometer

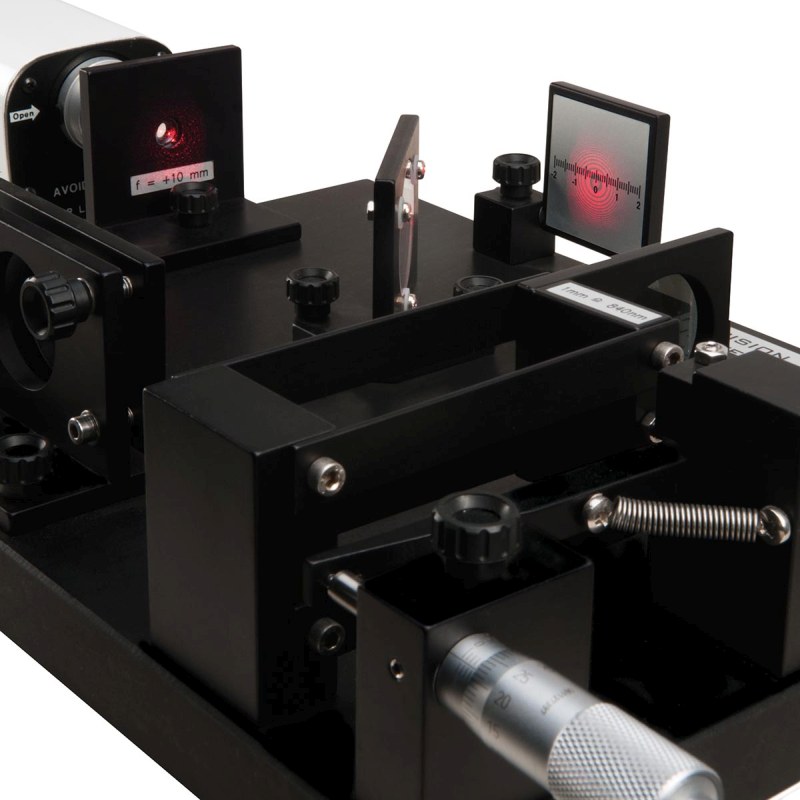

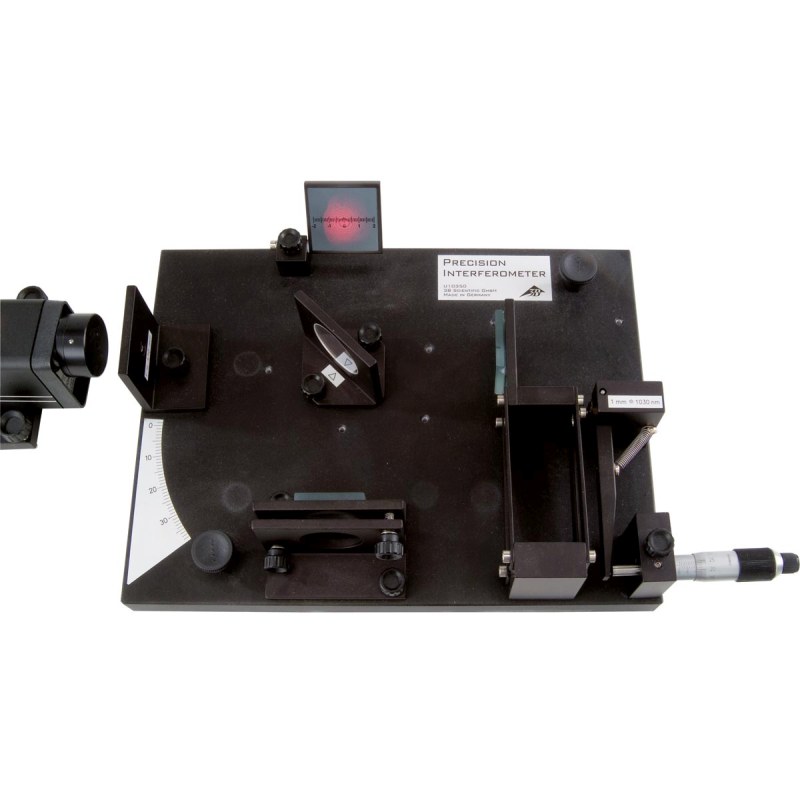

The Interferometer is made up of a complete equipment set comprising high-grade optical components mounted on a heavy, rigid base plate, for precise and reproducible measurements. The large optical components permit a the generation of clear and well-defined interference patterns in daylight. The reflective observation screen has an adjustable inclination, while pre-defined component positions allow quick rearrangement to ensure extremely rapid preparation for the various experiments.

uses of the interferometer

The interferometer is suitable for a range of experiment topics, including:

• Michelson's interferometer
• Fabry-Perot interferometer
• Determination of the refractive index of glass*
• Determination of the refractive index of air*
• Twyman-Green test for optical components (qualitative)*

*Accessory Set for the Interferometer required

features of the interferometer

• Complete interferometer equipment set with high-grade optical components
• Mounted on a heavy rigid base for precise measurements

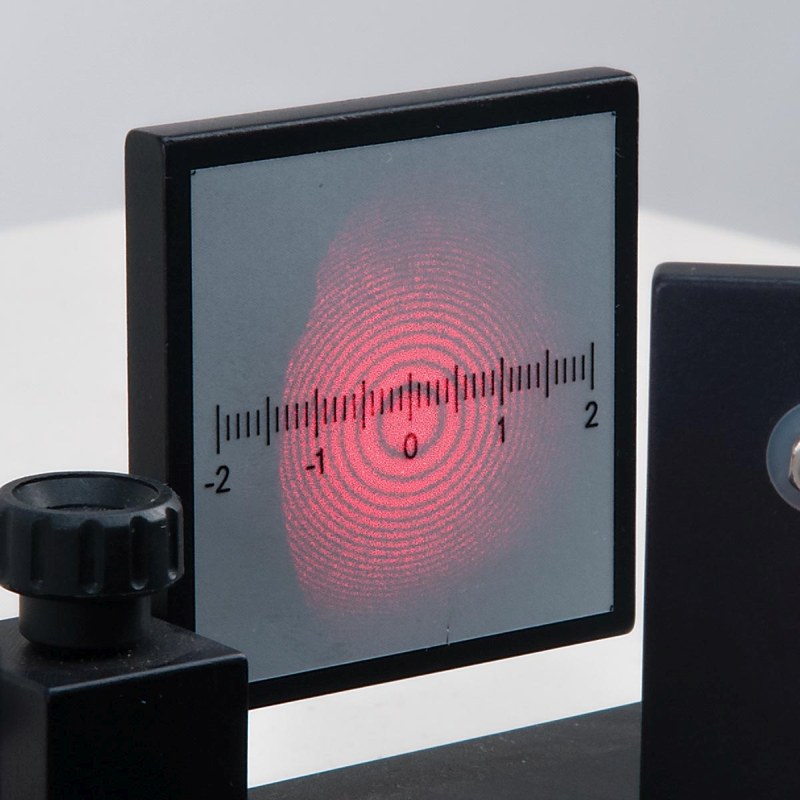

• Reflective observation screen with an adjustable inclination
• Pre-defined component positions for quick rearrangement and rapid preparation

specifications of the interferometer

• Beam splitter: diameter 40mm, evenness λ/10 (front side), λ/4 (rear side)
• Surface-coated mirror: dimensions 40 x 40mm, evenness <λ/2, eccentric reduction approx. 1:1000 (individual calibration specified on eccentric base)
• Base plate: weight 5.5kg, dimensions: 245 x 330 x 25mm

required equipment

• Helium-Neon Laser

compatible equipment

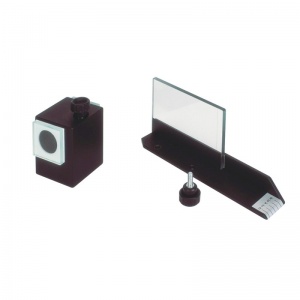

• Accessory Set for the Interferometer
