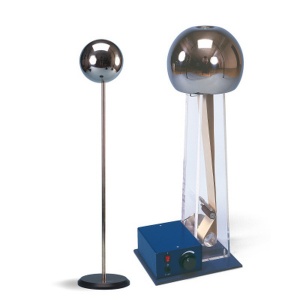

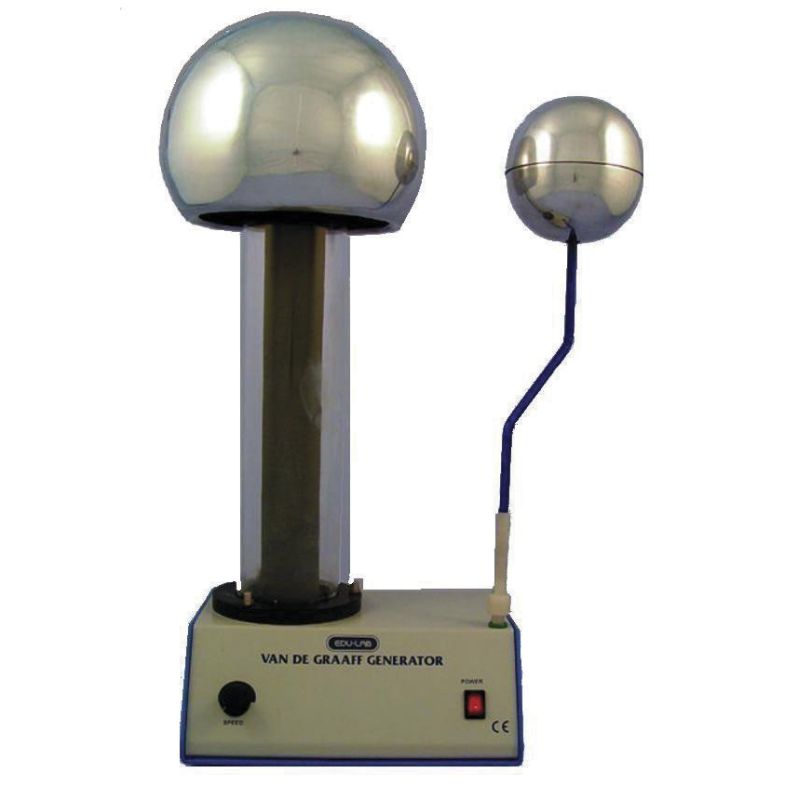

Van de Graaff Generator with Accessory Kit

The Edulab Van de Graaff Generator with Accessory Kit is perfect for classroom experiments designed to teach students about electrostatics.

Features and components of the Van de Graaff Generator with Accessory Kit

The Van de Graaff Generator with Accessory Kit has the following features and components:

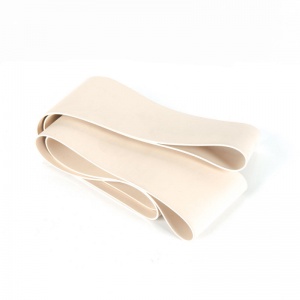

• Rubber belt driven by motor in base of device, powered by mains connection
• Charge is built up in the dome, which is supported by an acrylic glass pillar
• Electrostatic charge is created by friction between rubber belt and 2 rollers, 1 acrylic glass and 1 polythene
• Includes a variety of accessories (pictured) to facilitate a number of different educational demonstrations
• Base of unit features a 4mm socket for connecting included accessories Includes a dust cover

Technical Specifications of the Van de Graaff Generator with Accessory Kit

The Van de Graaff Generator with Accessory Kit has the following specifications:

• Operating Voltage: 220 to 240V AC (with 5A cartridge fuse)
• Dome Capacitance: (approx) 15pF
• Maximum (intermittent) current: (approx) 6µA
• Maximum Spark Length: (approx) 50mm

Dimensions of the Van de Graaff Generator with Accessory Kit

The dimensions of the Van de Graaff Generator with Accessory Kit are:

• Diameter of Generator Dome: 220mm
• Total Height: 500mm
• Base (max) Dimensions: 218 x 182 x 93mm
• Diameters of Conducting Spheres: 100mm
