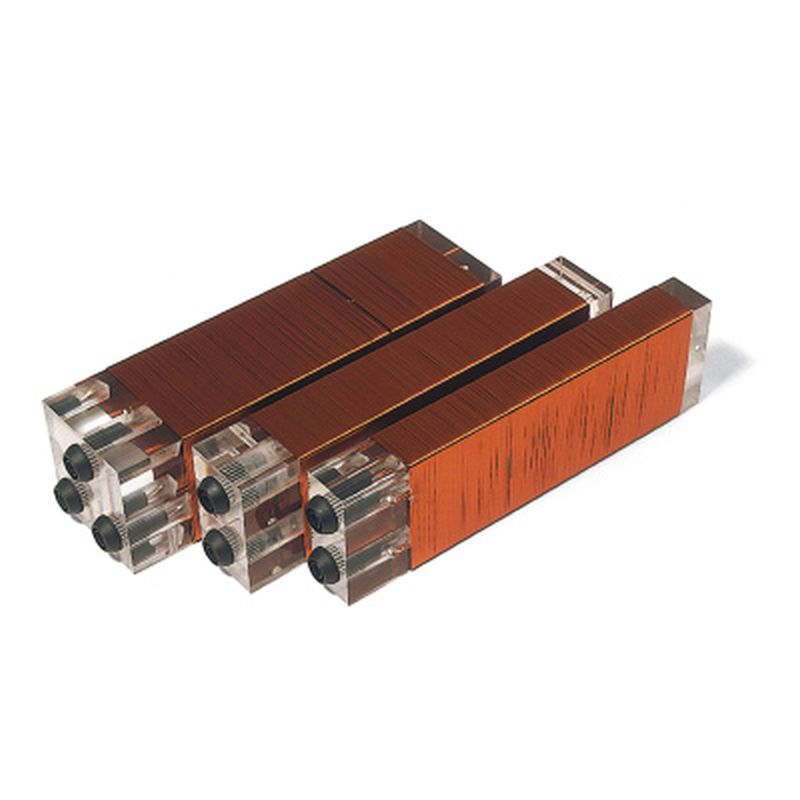

Set of 3 Induction Coils

The Set of 3 Induction Coils are designed to be used with the 120mm Field Coil. The spools are made from transparent acrylic plastic and the coils are designed for safety extra low voltage (SELV) only. The coils are suitable for experiments with resonant electric circuits and are supplied in sets of 3.

Features of the Set of 3 Induction Coils

• Supplied in sets of 3
• Designed to be used with the 120mm Field Coil
• Suitable for resonant electric circuit experiments
• Spools made from acrylic plastic
• Plastic is transparant
• Designed for SELV only - safety extra low voltage

Technical Specifications of the Set of 3 Induction Coils

• Connection: 4mm safety sockets
• Coil length: 170mm

Coil 1:

• Number of turns: 300 with taps at 100 and 200 turns
• Coil cross section: 50 x 50mm²

Coil 2:

• Number of turns: 300
• Coil cross section: 50 x 30mm²

Coil 3:

• Number of turns: 300
• Coil cross section: 50 x 20mm²

Compatible Equipment with the Set of 3 Induction Coils

• 120mm Field Coils

Delivery Information

The Set of 3 Induction Coils is usually delivered within 3 to 5 working days of ordering via UPS courier.
