Variable Inductance Coil

Measuring the inductance and self-inductance of a current-carrying coil is a natural part of any experiment investigating electromagnetic theory. Coils all depend on the insertion of an iron core to operate though.

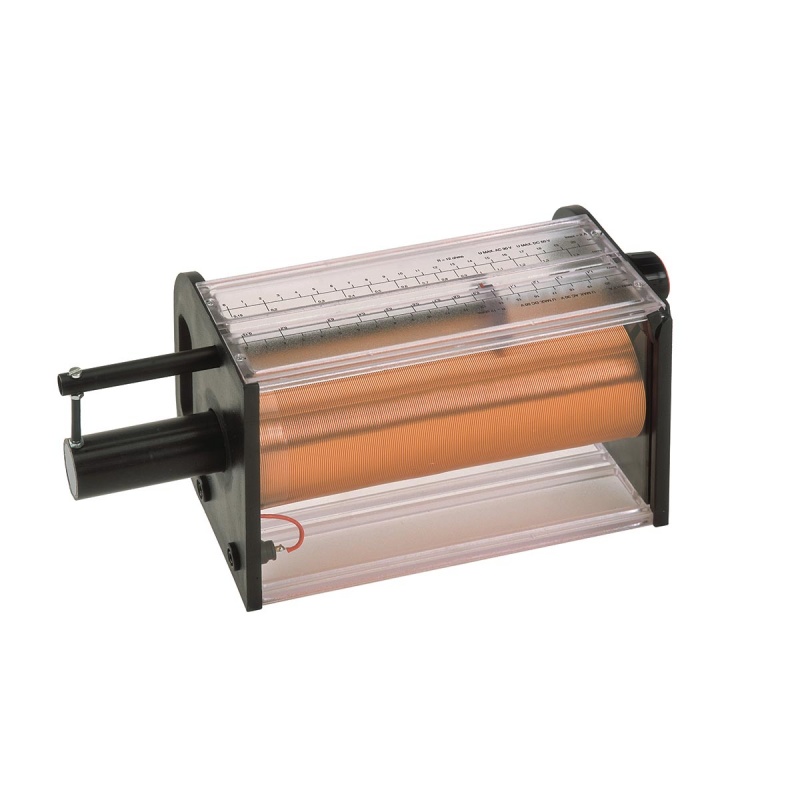

The Variable Inductance Coil has an iron core mounted on a worm screw; straightforward to slide in and out of the coils. The copper wire coils are positioned in a plastic-coated housing with lifting handles for ease of use and a clear, printed scale makes it simple to monitor how much of the core is inserted.

Features of the Variable Inductance Coil

• Investigates electromagnetic theory and AC circuits
• Coper wire coil
• Shock-resistant plastic housing
• Lifting handles
• Coated iron core
• Core mounted on worm screws
• Printed scale in cm to monitor the amount of coil inserted
• Measures inductance and self-inductance of a current-carrying coil

Technical Specifications of the Variable Inductance Coil

• Number of windings: 3000
• Maximum permissible voltage: 30V AC, 60V DC
• Maximum permissible current: 2A
• Inductance at 1A: 0.15-1.4H, continuously adjustable
• Resistance: 12.5Ω
• Terminals: 4mm safety plugs
• Dimensions: 265 x 145 x 130mm³
• Weight: 6.2kg

Delivery Information

The Variable Inductance Coil is usually delivered within 3 to 5 working days of ordering via UPS courier.
